Getting Started

Install the Rive Unreal plugin, run your first Artboard via URiveActorComponent, and display it in UMG.

This guide walks you through installing the Rive Unreal plugin, importing a .riv file, ticking it via URiveActorComponent, and displaying it in UMG.

Supported on Unreal Engine 5.7.3 and above.

1) Install the Plugin

Fab (Recommended)

1. Open the Epic Games Launcher or Unreal Editor.

2. Open Fab.

3. Search for Rive or go directly to:
   https://www.fab.com/portal/listings/4a79a0af-7614-42bd-8857-5375c2668706/

4. Add the plugin to your engine or project.

5. Restart Unreal Engine if prompted.

GitHub

1. Clone the repository:

   git clone https://github.com/rive-app/rive-unreal.git

2. Copy the Rive plugin folder into your project’s Plugins/ directory.

3. Regenerate project files and build.

2) Enable the Plugin

1. Open Edit → Plugins.
2. Locate Rive under Runtime.
3. Enable the plugin.
4. Restart the editor if required.

3) Import a Rive File

1. Open the Content Browser.
2. Drag and drop a .riv file into your project.

Unreal creates a Rive File asset. You can inspect this asset by double-clicking it.

A Rive File is an Unreal asset. It does not render directly.

5) Create a Widget

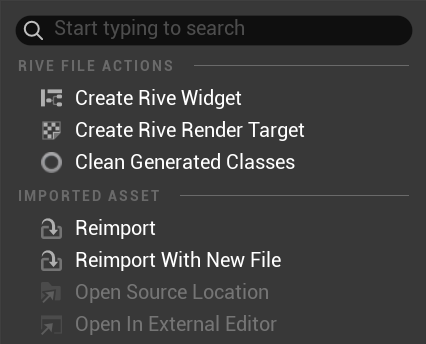

1. Right-click on the Rive file asset and select Create Rive Widget from the context menu.

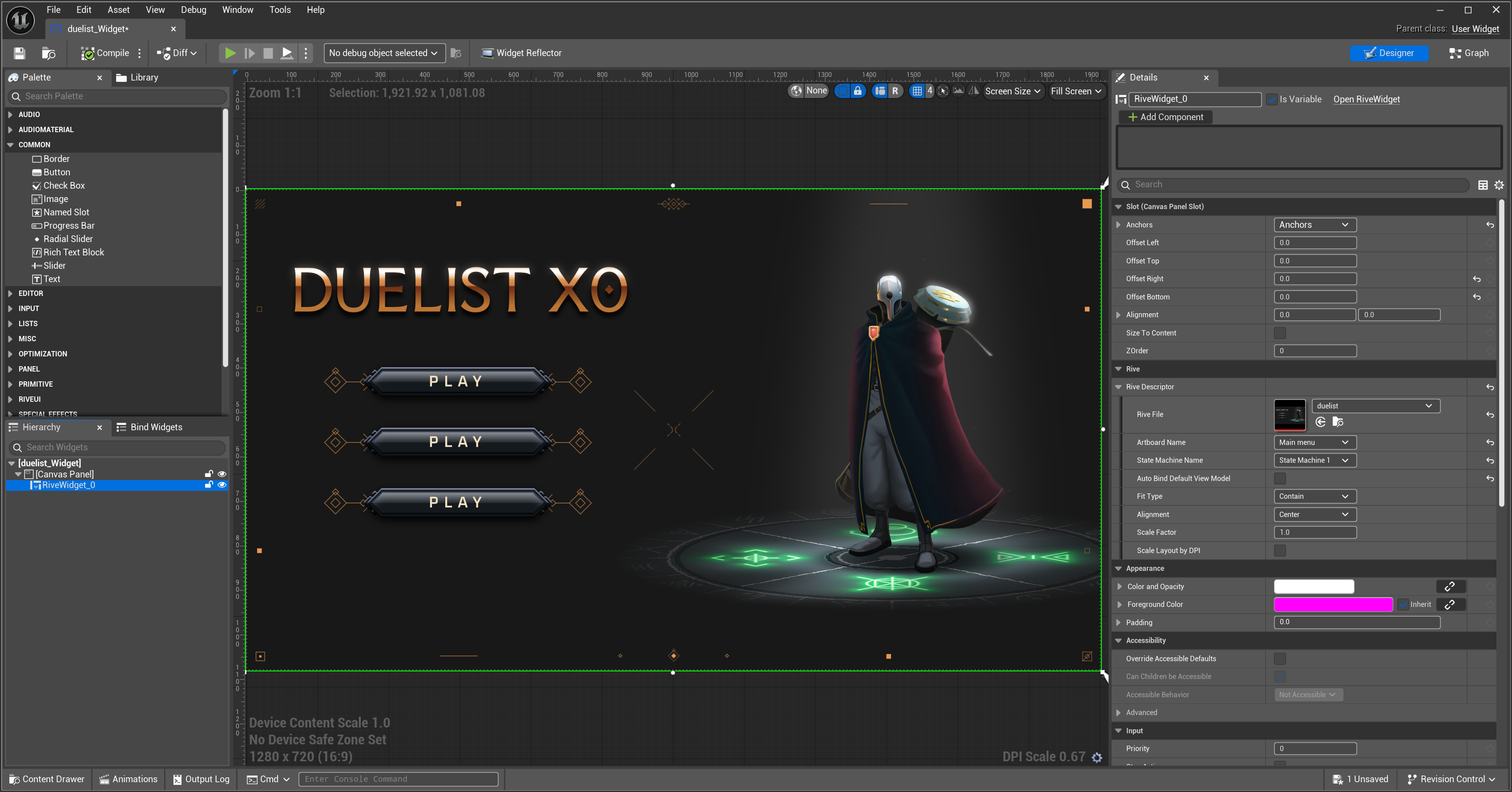

You can inspect the created widget by double-clicking it.

5) Create a Blueprint

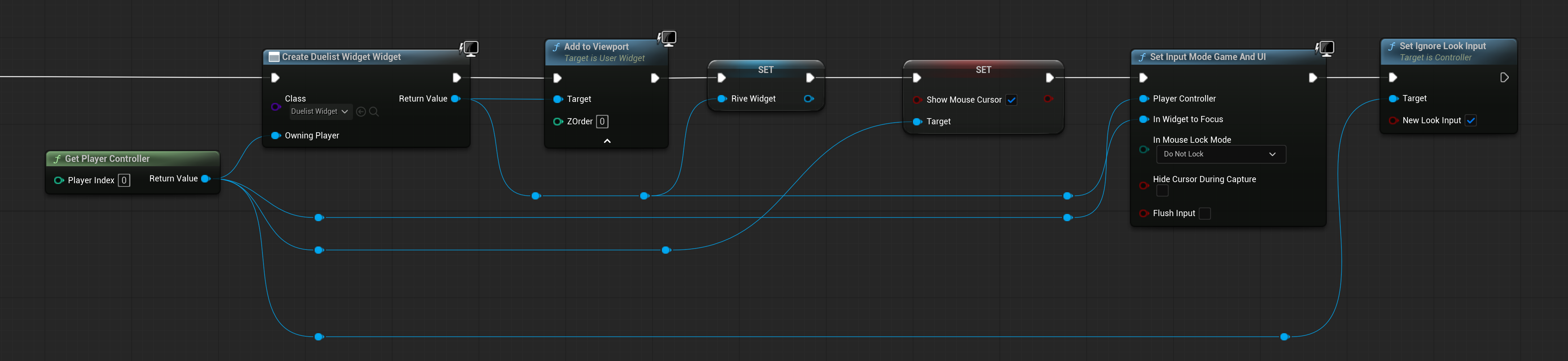

1. You can now use the widget in a blueprint just as you would any other widget.



6) Bind a ViewModel

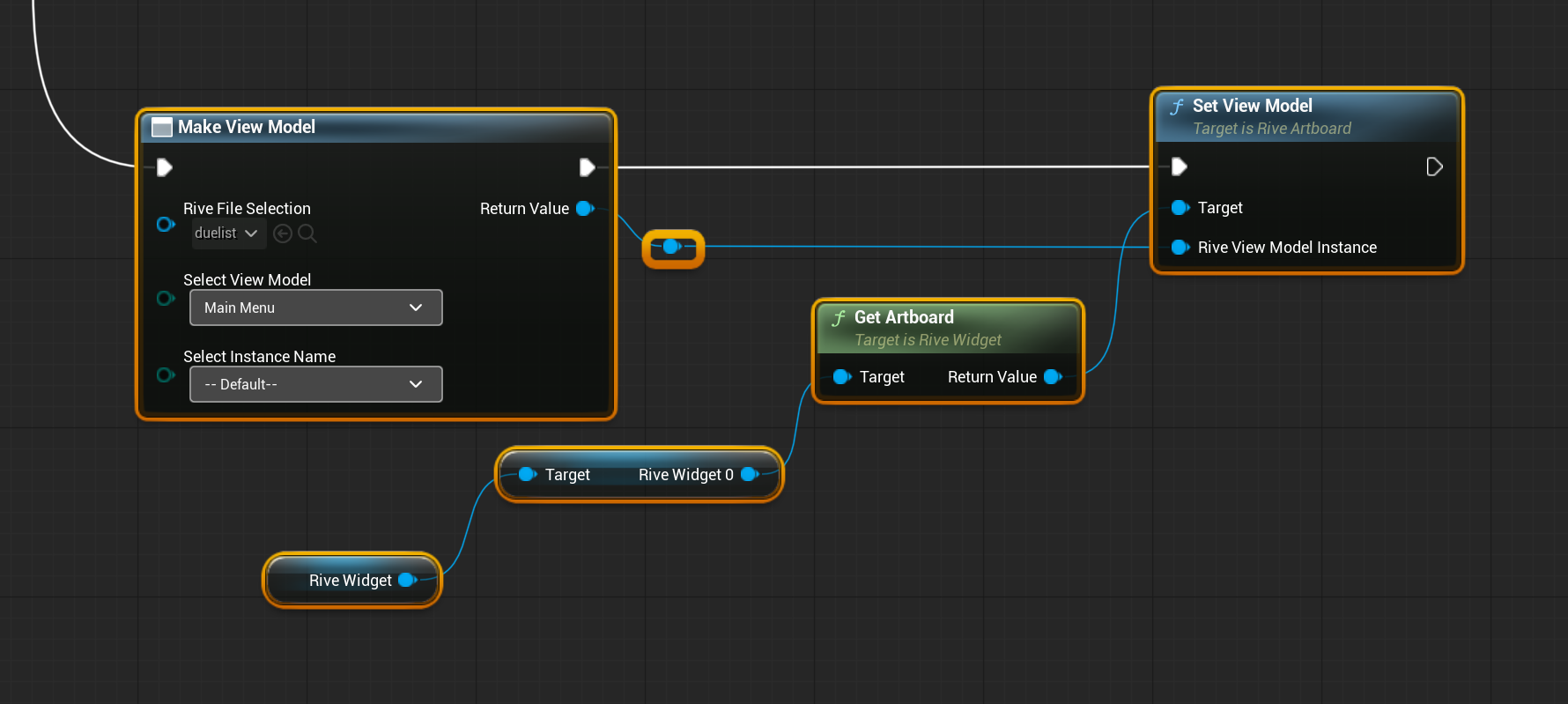

If the Rive File is not using autobinding, you must assign a viewmodel. This can be done in blueprints using the Make View Model node.

Your Rive File is now setup for use in your application. The next page will show you how to observe changes in teh ViewModel.
